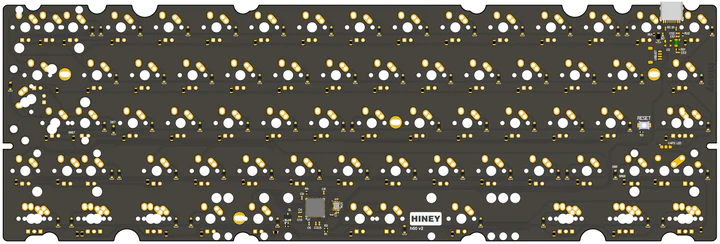

h60 RGB - USB-C Black
This PCB DOES NOT work with the Singa Unikorn. The Unikorn uses a different JST placement. Additional PCBs from this can be ordered from Singa directly.
- 60%, GH60 layout/mounting
- JST - JST SH 4-pin connector. No USB Type-C. Use only with daughterboards.
- The missing connectors can be soldered onto both versions.
- Buy a daughterboard here 🙂
- Compatible with QMK and VIA
- Cherry MX and Alps footprints
- Cherry PCB-mount stabilizer support
- RGB underglow

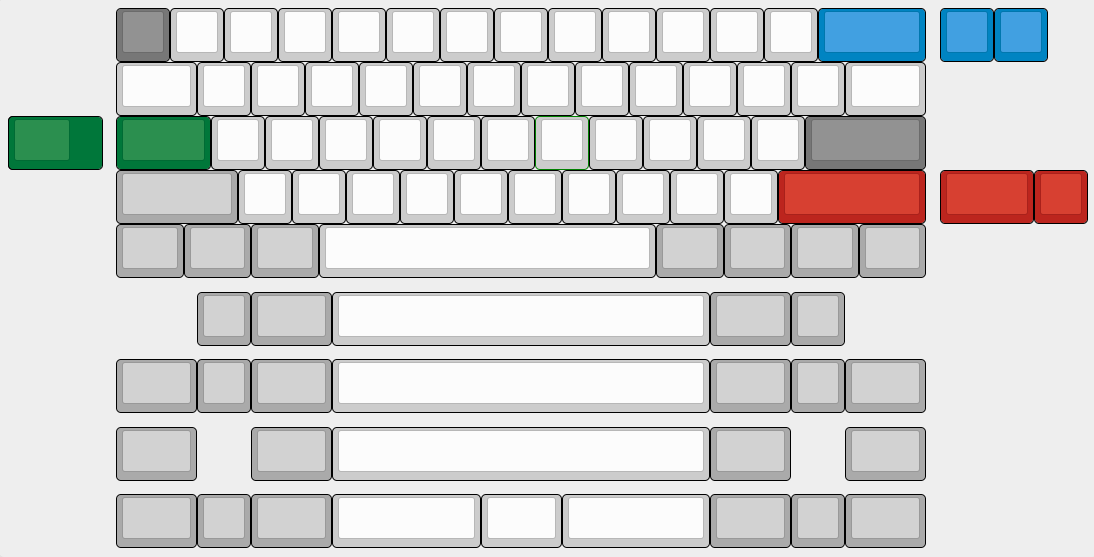

- This is an ANSI-only PCB, with bottom-row support. See the product images for specific layouts!
- Normal colored CEM3 core + gloss red solder mask
- Split space: 2.75 + 1.5 + 2.75 (fits 7u spots)
