USB C Daughterboard

$9.00 USD

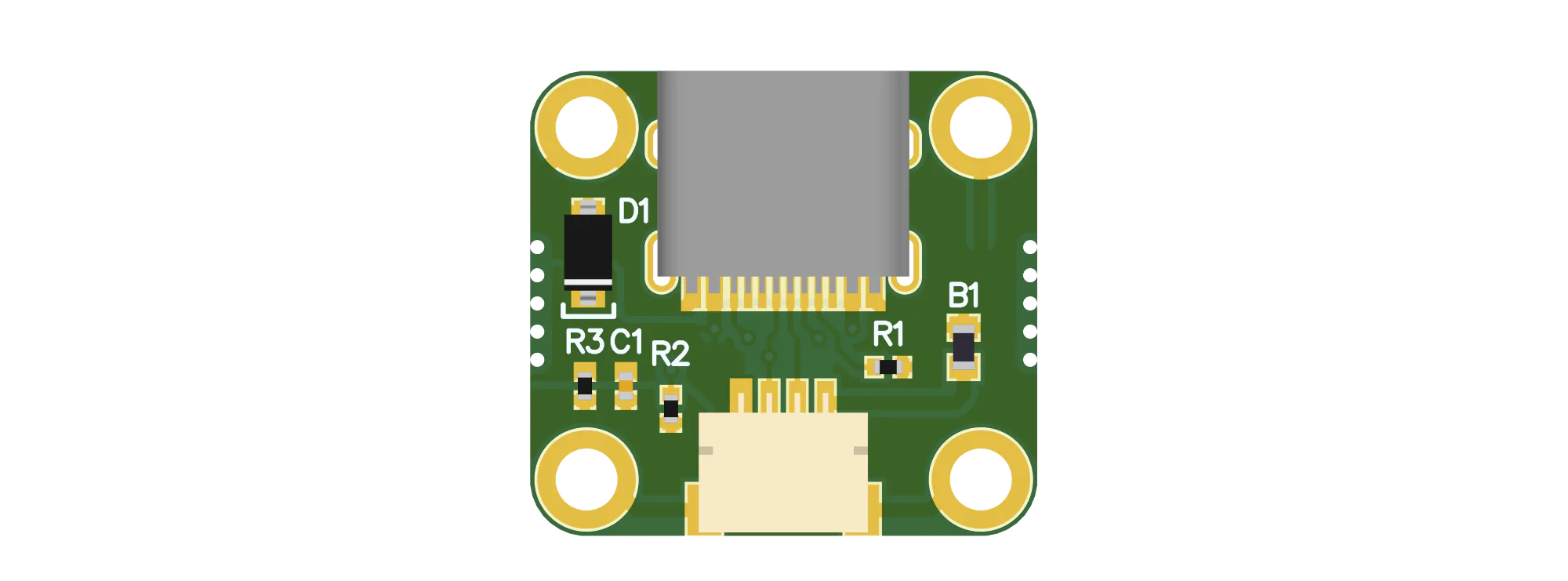

USB Type C-equipped daughterboard, designed to fit the footprint and pinout of ai03's Unified Daughterboard project. Please note that the ESD/EMI protection is not the exact same as ai03's version, however it is as effective.

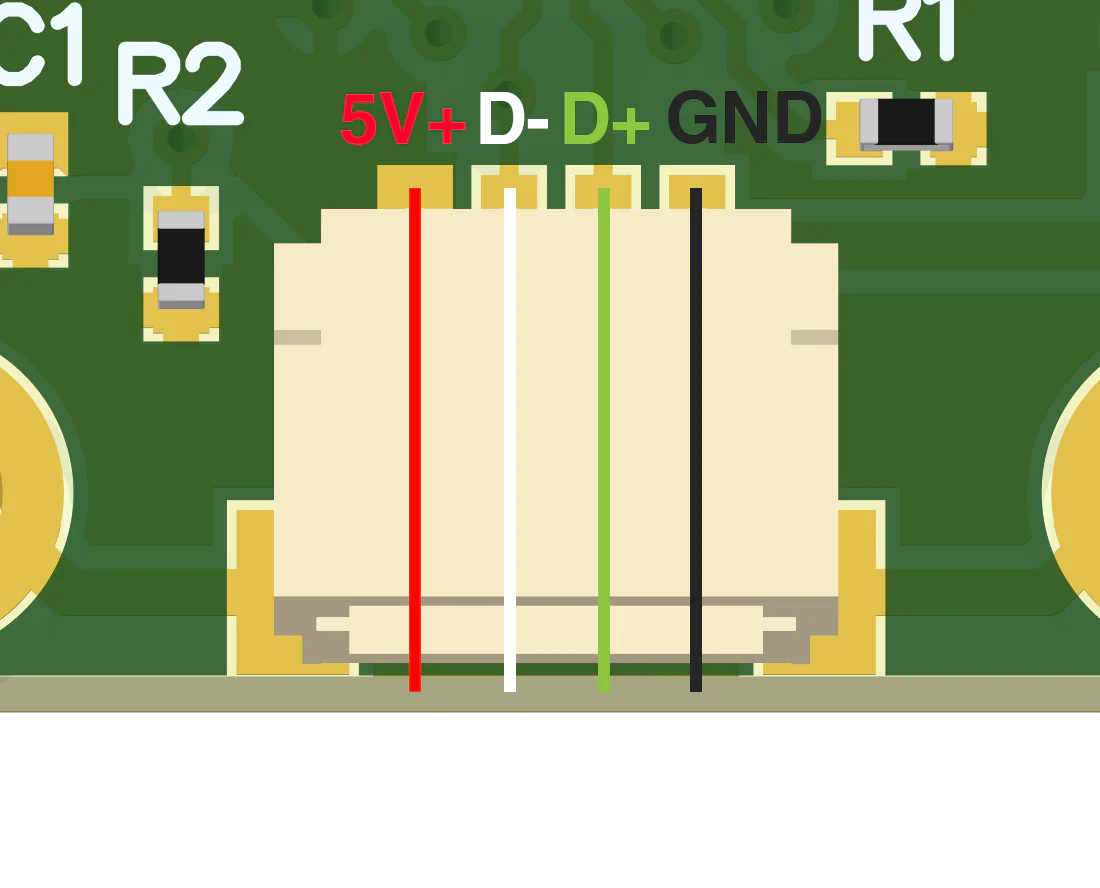

Designed using a JST SH 4-pin connector. The PCB is gloss black.

To connect this to your PCB properly, you need a 4-pin SH cable that is 1:1. I recommend Qwiic cables

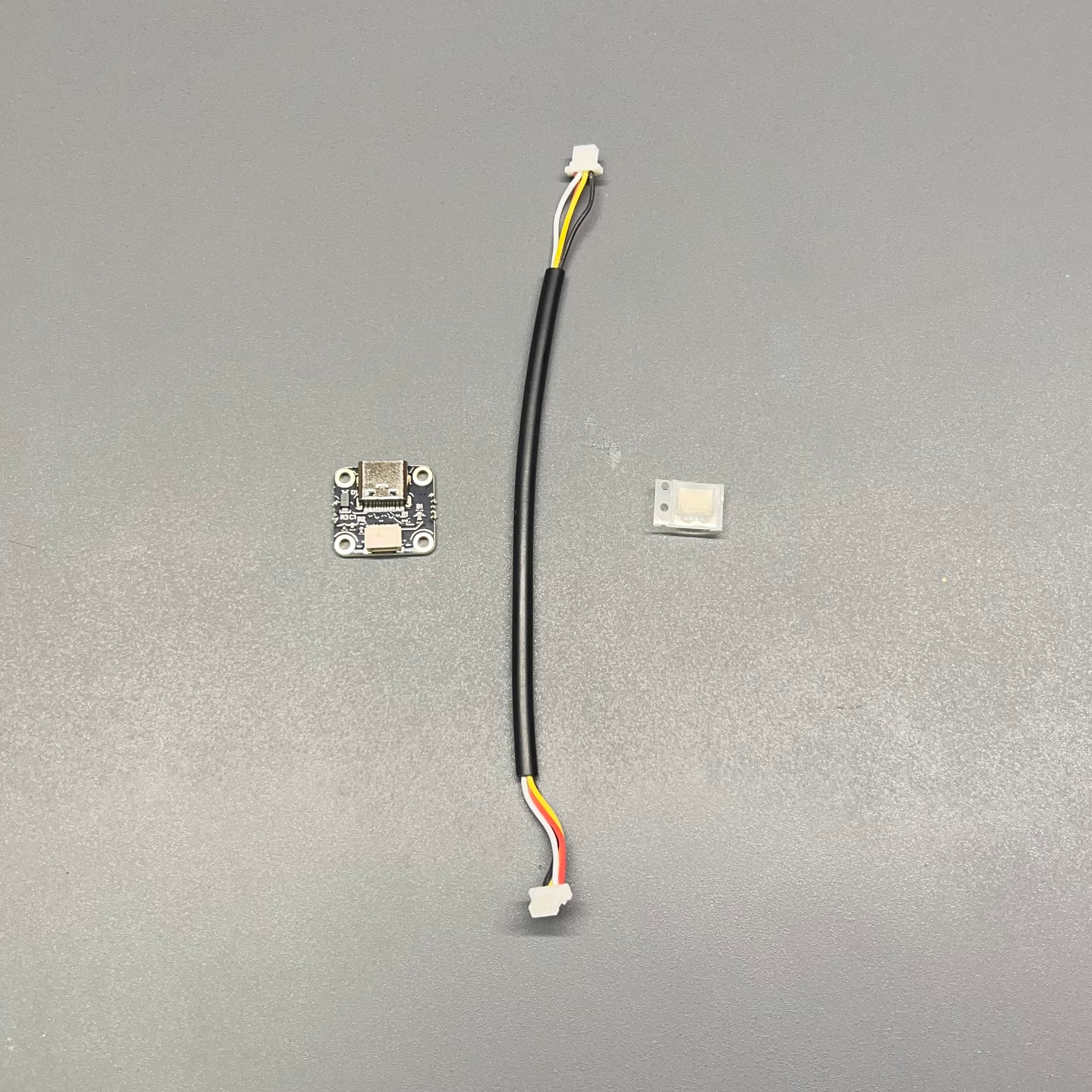

Includes one (1) 135mm-long JST 4-pin cable.

Add an SM04B-SRSS-TB(LF)(SN) connector to solder to a board for $1.

Link to right-angle JST SH 4 pin connector for the PCB side of things: SM04B-SRSS-TB(LF)(SN)
